Original Autel TESKIT Autel Tesla Diagnostic Adapter Cables for Tesla S and X Models Work with MaxiSYS Ultra/ MS909/ MS919 Tablet

Autel diagnostics cable kit for Tesla S and X vehicle models. Set of three cables enables MaxiSYS tablet users to connect with Tesla S and X vehicles to activate factory mode and perform system diagnostics. Kit includes Cable LAN001, cable CAN001 and cable CAN002.

UKOBD2 Provide top quality Original Autel TESKIT Autel Tesla Diagnostic Adapter Cables for Tesla S and X Models Work with MaxiSYS Ultra/ MS909/ MS919 Tablet, if you need Original Autel TESKIT Autel Tesla Diagnostic Adapter Cables for Tesla S and X Models Work with MaxiSYS Ultra/ MS909/ MS919 Tablet, or have any questions about Original Autel TESKIT Autel Tesla Diagnostic Adapter Cables for Tesla S and X Models Work with MaxiSYS Ultra/ MS909/ MS919 Tablet, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

images of Original Autel TESKIT Autel Tesla Diagnostic Adapter Cables for Tesla S and X Models Work with MaxiSYS Ultra/ MS909/ MS919 Tablet

Autel TESKIT Autel Tesla Diagnostic Adapter Cables Work with MaxiSYS Tablet

Features:

1. Compatiable Tablet: Autel Maxisys Ultra, Maxisys MS909, Maxisys MS919
2. Supported Vehicle Model: Tesla S and X Vehicle Models
3. Functions: Enables Autel Tablet to Activate Factory Mode and Perform System Diagnostics

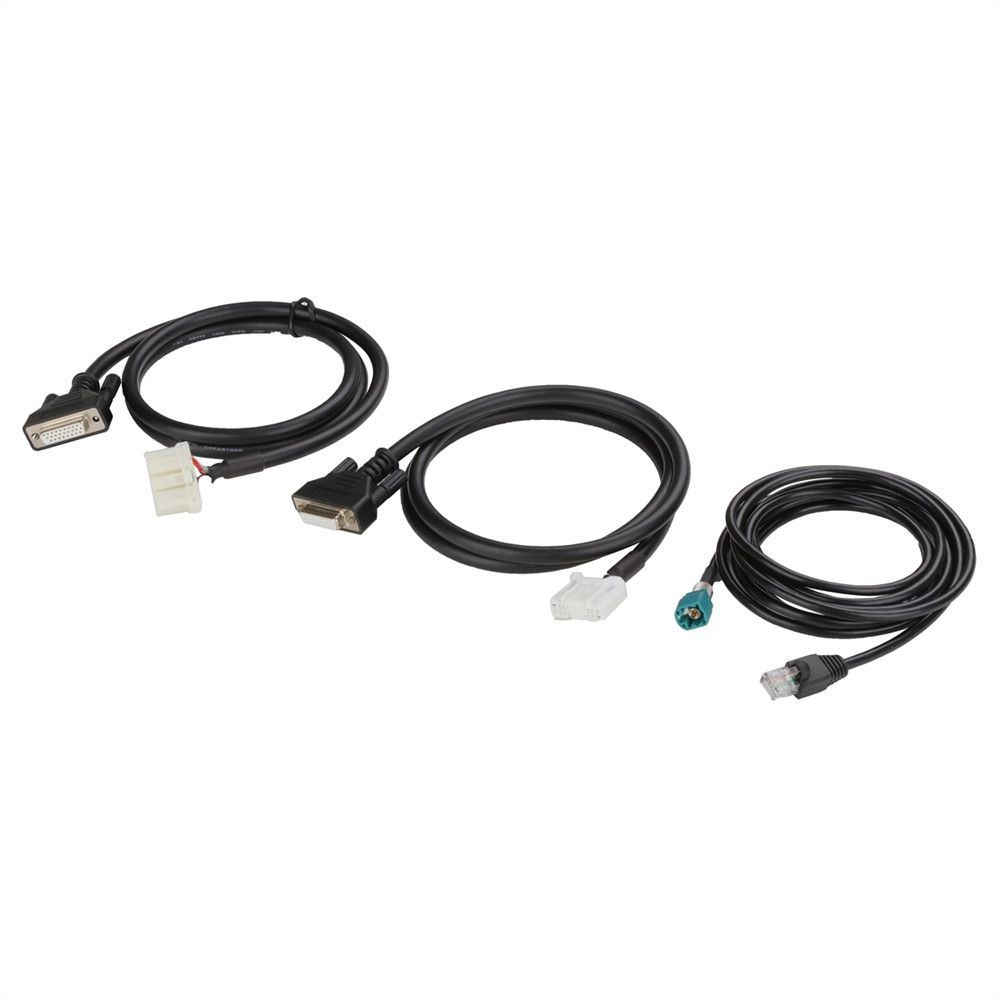

4. Kit Includes: Cable LAN001, cable CAN001 and cable CAN002



Functions of Each Cable:

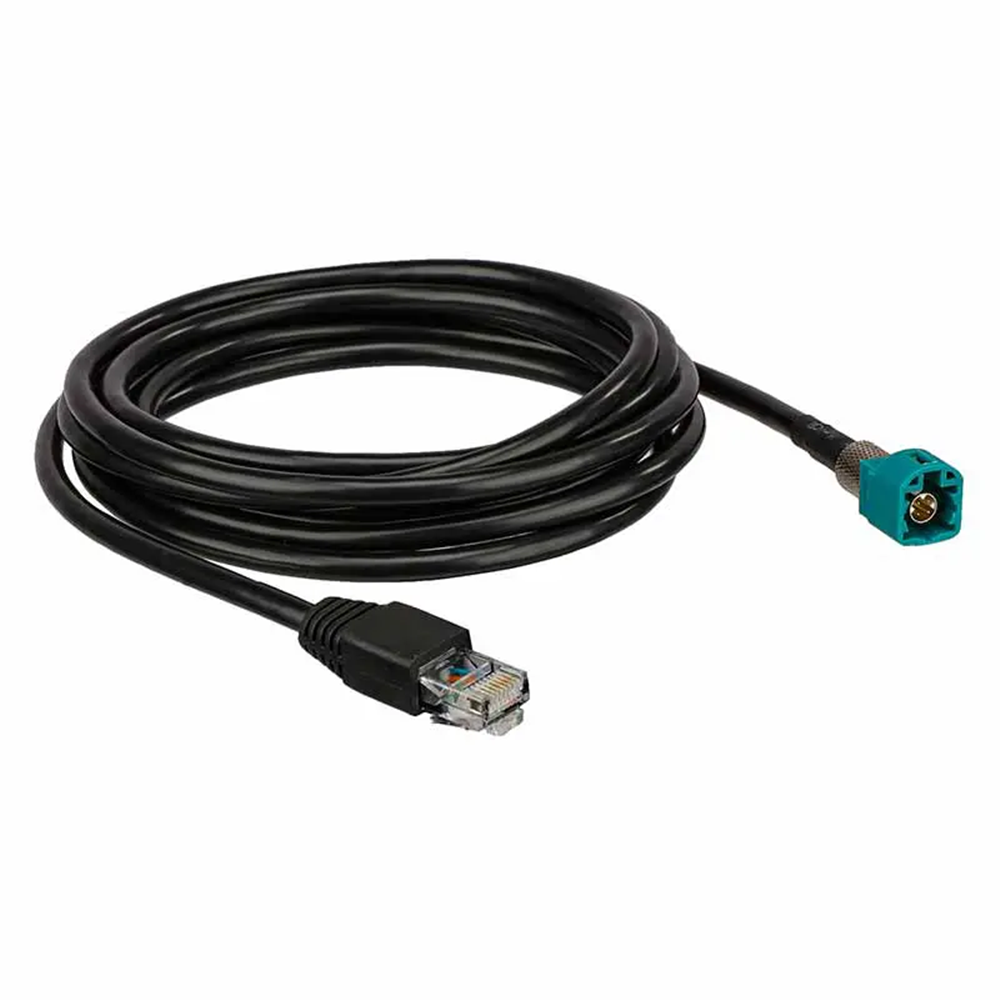

LAN001

- Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled)
- Connects to Tesla port X863 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.
- Connects to Tesla port X863 (located to the left of the instrument cluster) for diagnostics pre-2015/Sept vehicles.

CAN001
- Connects to Tesla port X437 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.

CAN002
- Connects to Tesla port X437 (located below the central control screen) for diagnostics of pre-2015/Sept vehicles.


Adapter Cable Supported Model Model Year Connection Port Connection Port Location Function
TLAN001 Model S/ Model X All X861 On the back of the instrument cluster Activate Factory Mode
After Sep 2015 X863 Below the Central Control Screen Perform Diagnosis for Lan related Systems
Before Sep 2015 On the left side of the Instrument Cluster
TCAN001 After Sep 2015 X437 Below the Central Control Screen Perform Diagnosis for Can related Systems
TCAN002 Sep 2015

Package List:

1set x Autel TESKIT Autel Tesla Diagnostic Adapter Cables
