CST Code Reader8 OBDII EOBD Code Scanner CodeReader8 OBD Scan Tool

Codereader 8 uses the latest ARM processor system frame. Swift response, a 3.2" full color LCD screen, Gorgeous vivid, Streamlining design, easy to use, humanized menu, three background subject choices according to the environment and the strength of the light. It will automatically adjust the backlit, it is convenient for the users to use it in the car when the light is not strong.

UKOBD2 Provide top quality CST Code Reader8 OBDII EOBD Code Scanner CodeReader8 OBD Scan Tool, if you need CST Code Reader8 OBDII EOBD Code Scanner CodeReader8 OBD Scan Tool, or have any questions about CST Code Reader8 OBDII EOBD Code Scanner CodeReader8 OBD Scan Tool, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

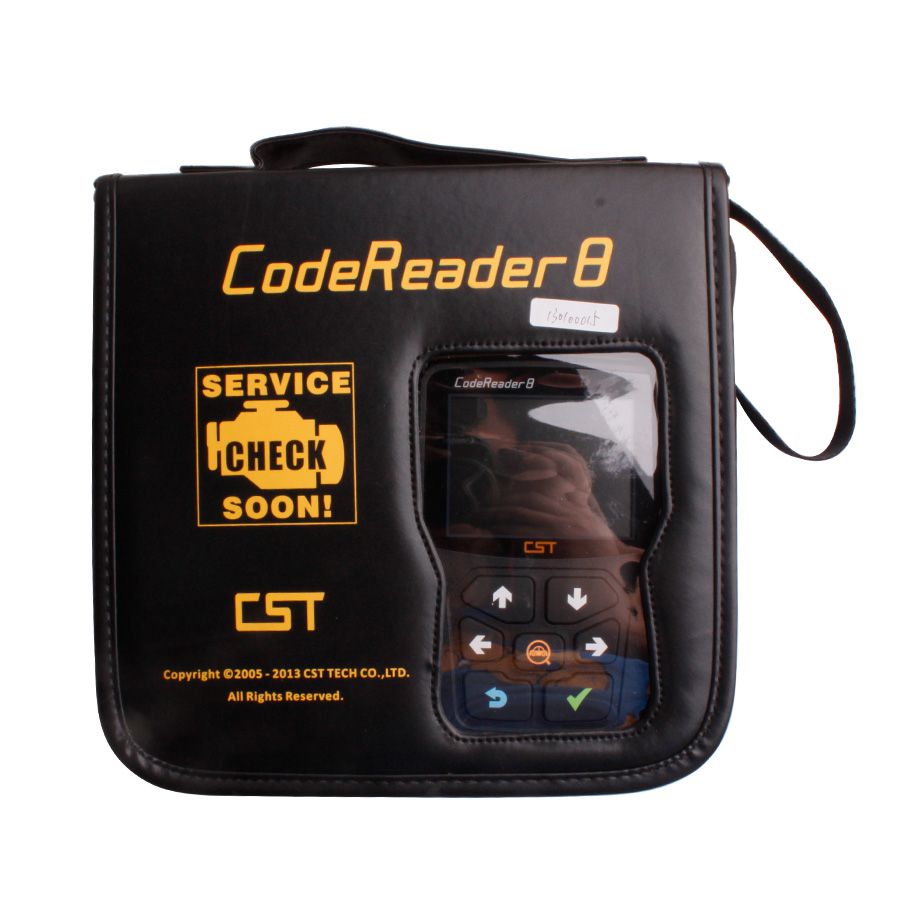

images of CST Code Reader8 OBDII EOBD Code Scanner CodeReader8 OBD Scan Tool

CodeReader8 CST OBDII EOBD Code Read Scanner

Version:

Hardware:1.0
Software: 1.01

Code Reader8 Features:

A key type diagnostic function.
Read dynamic data flow
Hazards instructions
Ready condition test.
Query Freeze data.
Read the current fault code
Erase the fault code.
Oxygen sensor detection test
Specific monitoring system test ,vehicle monitoring
Read pending fault code
Read the vehicle-mounted system or components of the control.
Read vehicle information.
Read permanent fault code.
Fault code search function.
Test data playback.

Code Reader 8 Function test:

Vehicle fuel consumption test
Vehicle acceleration test.


Compared with Launch Creader VI and Autel MS509, it has more advantages in these functions:
Vehicle fuel consumption test,
maintenance guidance.
it is more friendly-use with flash button.
Rapid response operation.
3.2 LCD, compared with 2.8 LCD of Creader VI.
Lower power consumption processor( 0.84W/H, compared with 1.2W/H of Creader VI).
Saving function can easily turn out results of diagnosing.
Hardware is made by flexible glue and polystyrene.

Technical parameter :

Screen: 3.2,320*240 colorful LCD screen.
Input voltage range: 9 ~ 18V
Working current: typical value<100mA 12V
Typical consumption:<<1.2W
Wiring Connected way: standard 16pin diagnostic port.
Working temperature: 0°C~ 50°C
Storage temperature:-20°C ~ 70°C @ RH 60%

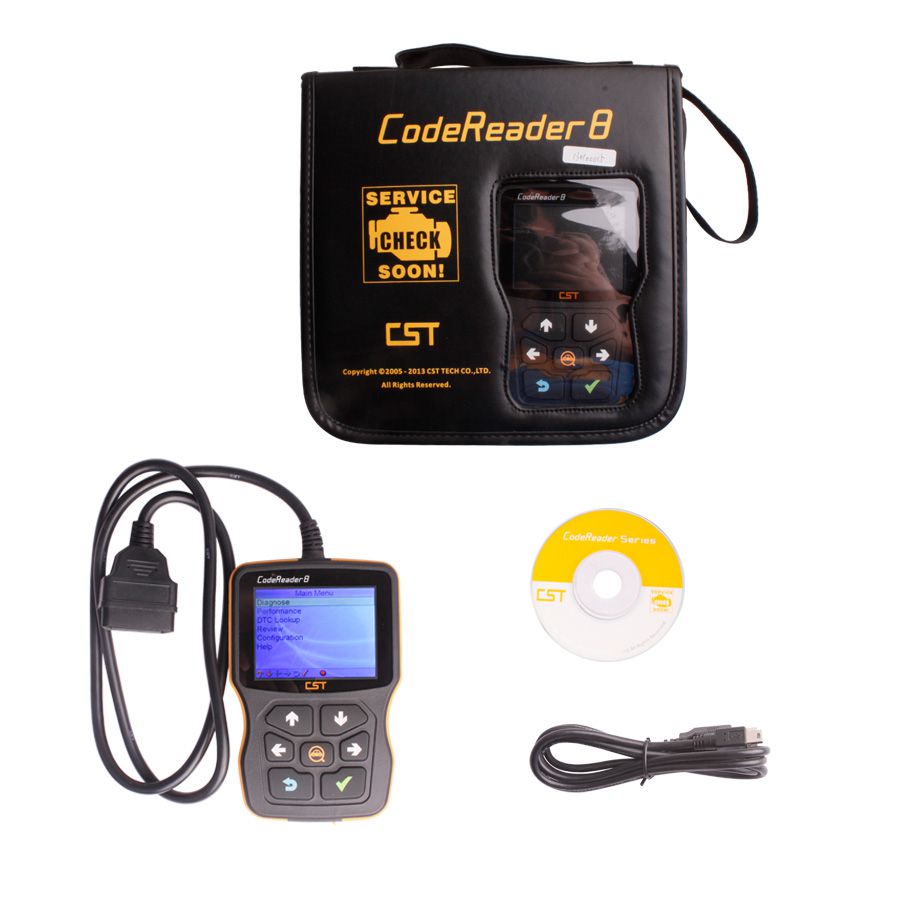

Package:

1pc *CodeReader8 main unit
1pc *CD
1pc *USB cable
1pc *4 feet OBDII connected cable



FAQ:

Q: I have received my item, but need register?
A: Yes, you need register and if you do not know how to register, we can send you video.

Q: Ok, but could you please tell me what to fill in dealer numbers and product serial number.
A: Where does this appear? On computer or on the main unit?

Q: Code Reader8 appears on the dash board and the serial number is 001120130100073. But it says that this is a wrong serial number and not exist.
A: Please send us the screenshot. The dealer numbers is 86A.
