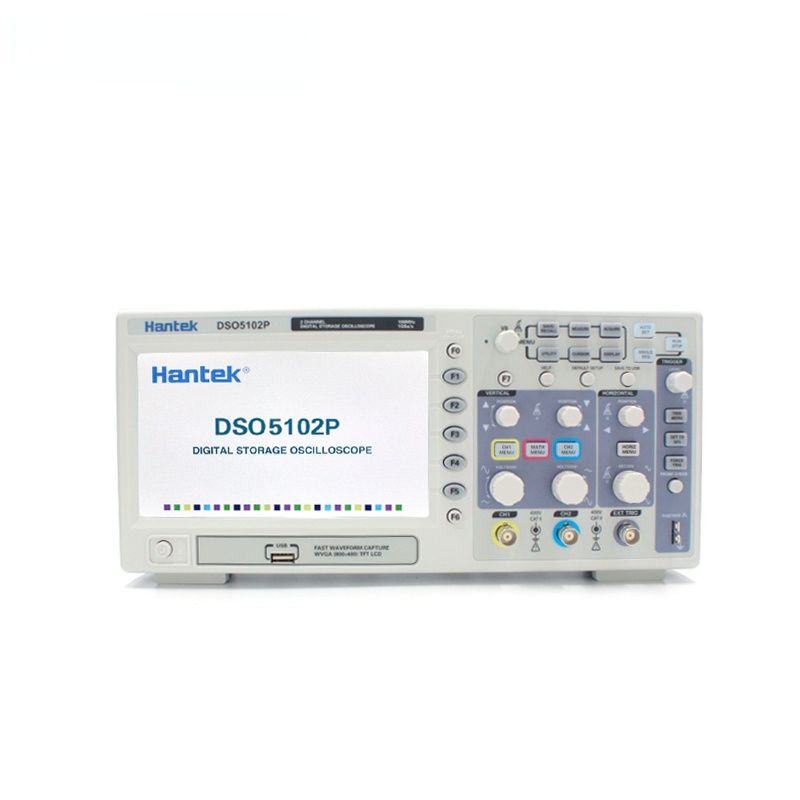

images of Hantek DSO5102P Digital Storage Oscilloscope Portable USB Osciloscopio Handheld Oscilloscopes 2 Channels 100MHz 1GSa/s 40K

Hantek DSO5102P Digital Oscilloscope 100MHz 2Channels 1GSa/s Real Time sample rate USB host and device connectivity 7 Inch

  • 100MHz bandwidths

  • 2 Channels

  • 1GSa/s Real Time sample rate

  • Large (7.0-inch) color display,WVGA(800x480)

  • Record length up to 40K

  • Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

  • USB host and device connectivity, standard

  • Multiple automatic measurements

  • Four math functions, including FFTs standard

  • Provides software for PC real-time analysis

  • VGA Optional

  • Software:

    Operating system: Windows NT, Windows 2000, Windows XP ,VISTA

DSO5202P

DSO5102P

DSO5072P

Bandwidth

200MHz

100MHz

70MHz

Channel

2

Real-Time Sample

1GSa/s

Equivalent Sample

25GSa/s

Memory Depth

40K

Rise Time

1.7ns

3.5ns

5ns

Time Base Accuracy

50ppm

Time Base Range

2ns/div-40s/div

4ns/div-40s/div

Input Impendance

1M

VOLTS/DIV Range

2mV/div-5V/div

A/D Converter

8 bit

Position Range

50V(5V/div), 40V(2V/div-500mV/div),
2V(200mV/div-50mV/div), 400mV(20mV/div-2mV/div)

DC Gain Accuracy

3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

Bandwidth Limit

20MHz

Trigger Types

Edge, Video, Pulse, Slope, Over time, Alternative

Trigger Source

CH1, CH2, EXT, EXT/5, AC Line

Math

+,-,x,÷,FFT

Cursor Measurement

Voltage difference between cursors: V;
Time difference between cursors: T;
Reciprocal of T in Hertz (1/T);

Auto Measuerment

Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF

Display

7" TFT 16K Color LCD, 800*480 dots

Size

313mm x 108mm x 142mm

Weight

2.08KG

Standard Probe

PP200x2

PP150X2

PP80X2

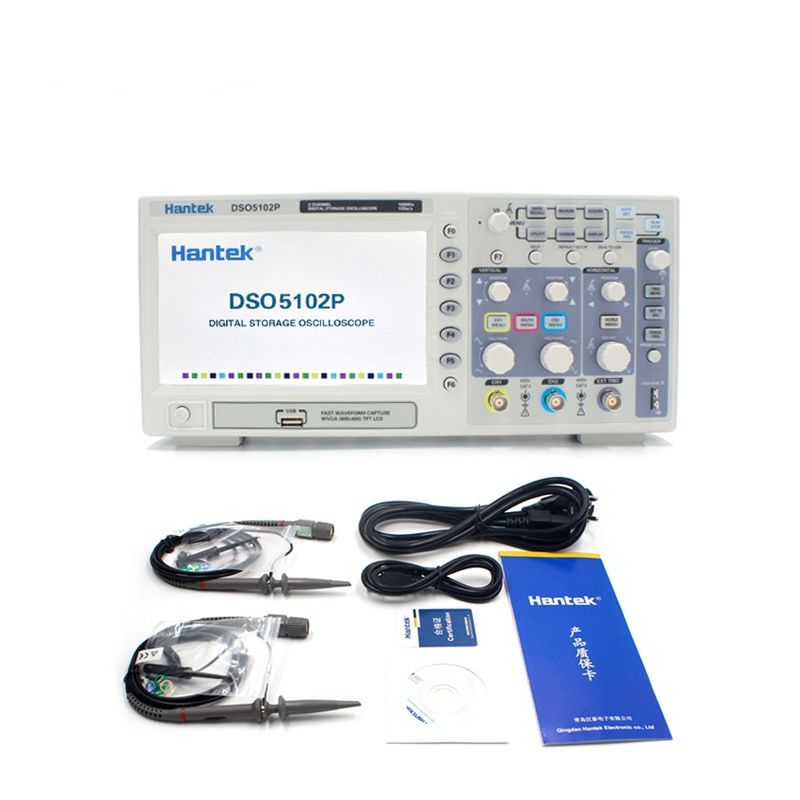

  • 1 x 5102P Oscilloscope Host

  • 2 x Connecting Lines

  • 1 x USB Cable

  • 1 x Installation CD

  • 1 x Power line

  • 1 x Original box
