FVDI2 FVDI 2 ABRITES Commander For Toyota Lexus V9.0 Software USB Dongle
FVDI 2 Toyota/Lexus Commander is a professional software for diagnostic of Toyota/Lexus/Scion vehicles. It allows you to perform complete diagnostics of all 1995-present Toyota/Lexus/Scion models. It provides some unique functions, which are not supported by any other diagnostic tool.
UKOBD2 Provide top quality FVDI2 FVDI 2 ABRITES Commander For Toyota Lexus V9.0 Software USB Dongle, if you need FVDI2 FVDI 2 ABRITES Commander For Toyota Lexus V9.0 Software USB Dongle, or have any questions about FVDI2 FVDI 2 ABRITES Commander For Toyota Lexus V9.0 Software USB Dongle, welcome to contact us.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

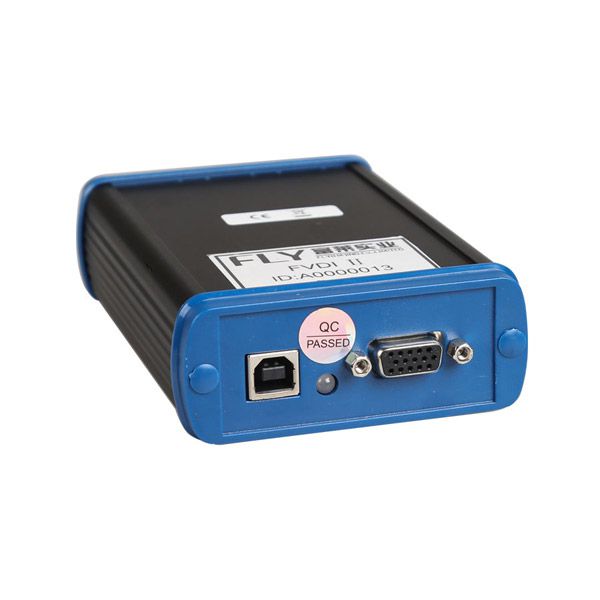

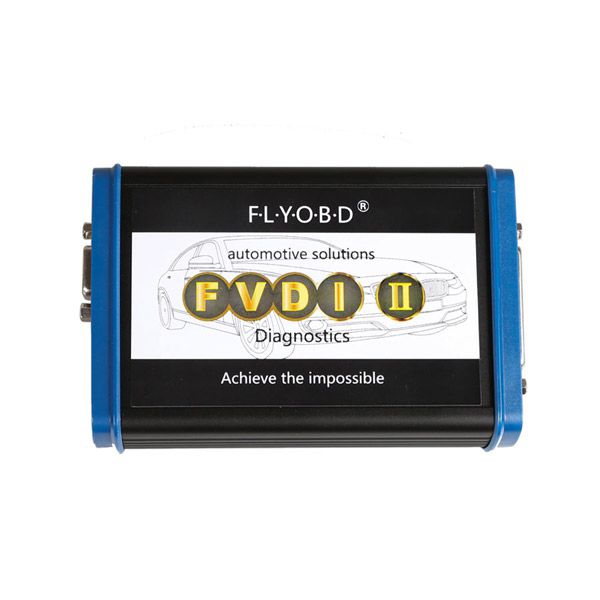

images of FVDI2 FVDI 2 ABRITES Commander For Toyota Lexus V9.0 Software USB Dongle
FVDI 2 ABRITES Commander For Toyota LEXUS(V6.0)
Top 7 Reasons to Get Toyota Lexus FVDI II:
1. Software Version: 9.0
2. Language: English Only
3. Buy Toyota/Lexus software get Hyundai/Kia/Tag Key Tool software free
4. Update: Before update, you need advise the FVDI ID first, we will check if the ID is in the update list which can be update by email, if not in the list, can not do it yourself. you need send back the multiplexer to us for updating. and you need pay for the shipping cost of it
5. Supported Vehicles: Toyota/Lexus/Scion Vehicles 1995-present
6. Supported Computer System: Windows XP Only
7. Promotion: Buy this FVDI Commander, you also can get free 20 Digit Nissan Pin Code Calculator Software.
Note: When use this 20 Digit Nissan Pin Code Calculator, you need connect the software dongle and FVDI host, and you must Close FVDI Software when use this calculator.
FVDI Commander Software Installation Video
More Techincal Support for FVDI
FVDI Connection for Authorization:
When obtaining authorization, please operate according to the following steps strictly:
Step 1. Connect the Softdog to FVDI. Do not connect Softdog to the computer, otherwise the green light of Softdog or red light will be on, and result in authorization failure.
Step 2. Use USB cable to connect FVDI and the computer, but do not connect FVDI to the car. Wait until FVDI green light flashing and Softdog red light on, then you will get authorization successfully. If FVDI red light on or Softdog green/red flashing, it shows abnormal, please repeat the above steps to connect again.
After get authorization for FVDI, follow the next steps to connect.
Step 1. Connect the Softdog to FVDI (Note: do not connect Softdog to the computer).
Step 2. Use USB cable to connect FVDI and the computer. Wait until FVDI green light flash and Softdog red light on, then connect Softdog USB cable to the computer. During the procedure, the Softdog red light keeps on (Note: do not connect FVDI to the car)
Step 3. Till the above 2 steps work well, connect FVDI to the car.
Technical specification:
1. K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector
2. ISO14230 compliant
3. Single wire CAN bus multiplexed to different pins of diagnostic connector
4. Dual wire low speed CAN bus multiplexed to different pins of diagnostic connector
5. Dual wire high speed CAN bus multiplexed to different pins of diagnostic connector
6. CAN bus GMLAN, ISO14229, ISO15765, J1939, ISO22901 compliant
7. USB interface to the PC
8. Supply voltage 8-30V DC
9. OBDII cable
10. Updatable firmware
11.Abrites Commander for Toyota/Lexus
FVDI Toyota/Lexus Commander Function:
Read fault codes and Clear fault codes
Device scan
Display of Actual Values
Actuator Tests
Custom Read/Write
FVDI Toyota/Lexus Commander Special Functions:
ID-box reset by LIN connection
ECU flasher - available for EDC15, EDC16 engine control modules
Dump tool - wide range of options for resetting (renew) of different units (immobilizers, smart systems, engine control modules, instrument clusters) by memory dump.
Dump tool - wide range of options for resetting (renew) of different units (immobilizers, smart systems, engine control modules, instrument clusters) by memory dump.
Key Programming - provides ability for reset of immobilizer or smart system of the vehicle, registration of keys and remotes
Transponder tool- programming key by dump of smart system/immobilizer, identification of transponders, cloning of ID67,ID68,ID70 and Texas fixed transponders, ability for preparation of ID67, ID68, ID70
Supported are also latest immobilizers with encrypted memory
FVDI Commander for Toyota Software Display:
Go to Buy: FVDI2 FVDI 2 ABRITES Commander For Toyota Lexus V9.0 Software USB Dongle
