Tech2 Diagnostic Scan Tool for GM with Candi Interface (GM/SAAB/OPEL/SUZUKI/ISUZU/Holden)

GM Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. It comes with Authentic GM software, if you need other car model, you only need buy one additional memory card. GM TECH2 support GM vehicles till 2013 year. TIS2000 do till 2007 year GM car programming.

UKOBD2 Provide top quality Tech2 Diagnostic Scan Tool for GM with Candi Interface (GM/SAAB/OPEL/SUZUKI/ISUZU/Holden), if you need Tech2 Diagnostic Scan Tool for GM with Candi Interface (GM/SAAB/OPEL/SUZUKI/ISUZU/Holden), or have any questions about Tech2 Diagnostic Scan Tool for GM with Candi Interface (GM/SAAB/OPEL/SUZUKI/ISUZU/Holden), welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

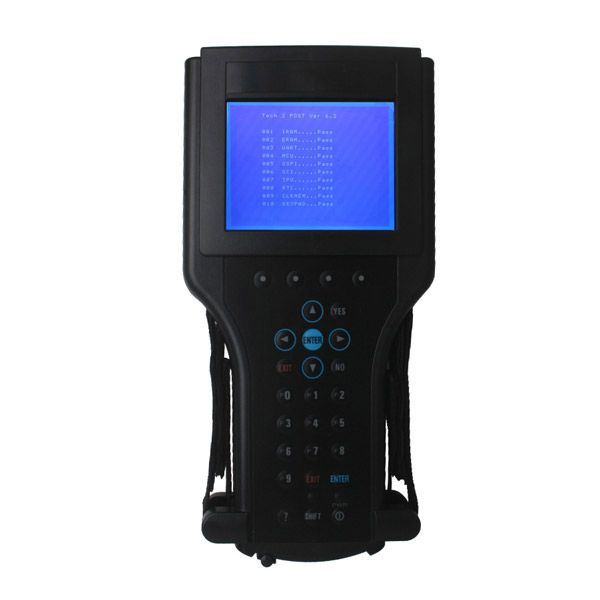

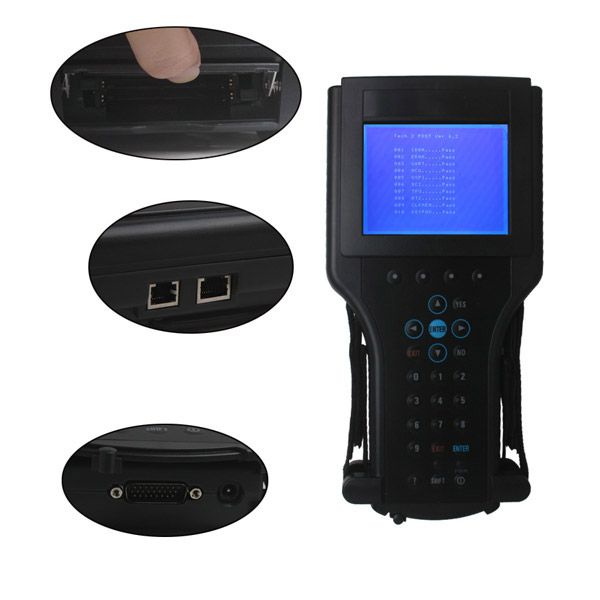

images of Tech2 Diagnostic Scan Tool for GM with Candi Interface (GM/SAAB/OPEL/SUZUKI/ISUZU/Holden)


GM Tech2 GM Diagnostic Scanner

Top 5 Reasons to Get GM Tech2:
1. Newest version: V31.0
2. Can be Updated by 32MB card
3. Best diagnose and program tool for GM
4. Multi-Language: English/ German/ Spanish/ Japanese/ French/ Italian and others.
5. Can do diagnose, scan in one tool for 6 cars: GM, SAAB, OPEL, SUZUKI, ISUZU and Holden
(Need buy 4 cards more)
You can choose one software and language from the following:
GM
GM-English 33.004 1991-2013
GM-Germany 32.008 1991-2013
GM-Spanish 32.008 1991-2013
GM-Japanese 32.008 1991-2013
GM-French 32.008 1991-2013
GM-Thai 32.008 1991-2013
GM-Portuguese 32.008 1991-2013
GM-Korean 32.008 1991-2013
SAAB
SAAB-English 148.000
OPEL-English V165 1997-2014
OPEL-Italian 133.001 1997-2012
OPEL-Germany 85.001 1997-2008
OPEL-Spanish 91.001 1997-2009
Holden-English  V149 1999-2013
SUZUKI-English 01.210.020
ISUZU-English CAN-BUS 107.021 2010- (CAN-BUS support car models after 2010)
ISUZU-English K-Line 11.62 1996-2013 (K-line support car models from 1996 to 2011)
(If you want SUZUKI software, please tell us you want CAN-BUS or K-line)

GM Tech2 Specification:

1. Features

1) Support for on-board diagnostics on all GM systems 1992 thru current year.
2) GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
3) Removable hardware modules provide insurance against scan tool obsolescence.
4) Large, easy-to-read backlit screen.
5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7) Ability to view the status of vehicle diagnostic tests as they run.
8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.
9) Microprocessor: 32 bit,16 MHz
10) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
11) Communications: Integral RS232 communication port.
12) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download tech2 Brochure (5.2 MB)

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

2. The following GM vehicles utilize the CAN interface

05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

Package including:

Tech-2 Flash Tester
32 MB PCMCIA Card with GM OE Applications
RS232 cable and user`s manual
RS232-DB9 adapter
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable
SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable
Storage Case
TIS 2000 CD( support GM Coding till 2007 year)
CAN diagnostic interface module(CANDI)

Go to Buy: Tech2 Diagnostic Scan Tool for GM with Candi Interface (GM/SAAB/OPEL/SUZUKI/ISUZU/Holden)
