2023 GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS/ HDS/ TIS/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327 Diagnose J1979 Compatible Vehicles

GODIAG GD101 J2534 is compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0.Works with J2534 Passthru and ELM327

UKOBD2 Provide top quality 2023 GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS/ HDS/ TIS/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327 Diagnose J1979 Compatible Vehicles, if you need 2023 GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS/ HDS/ TIS/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327 Diagnose J1979 Compatible Vehicles, or have any questions about 2023 GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS/ HDS/ TIS/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327 Diagnose J1979 Compatible Vehicles, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

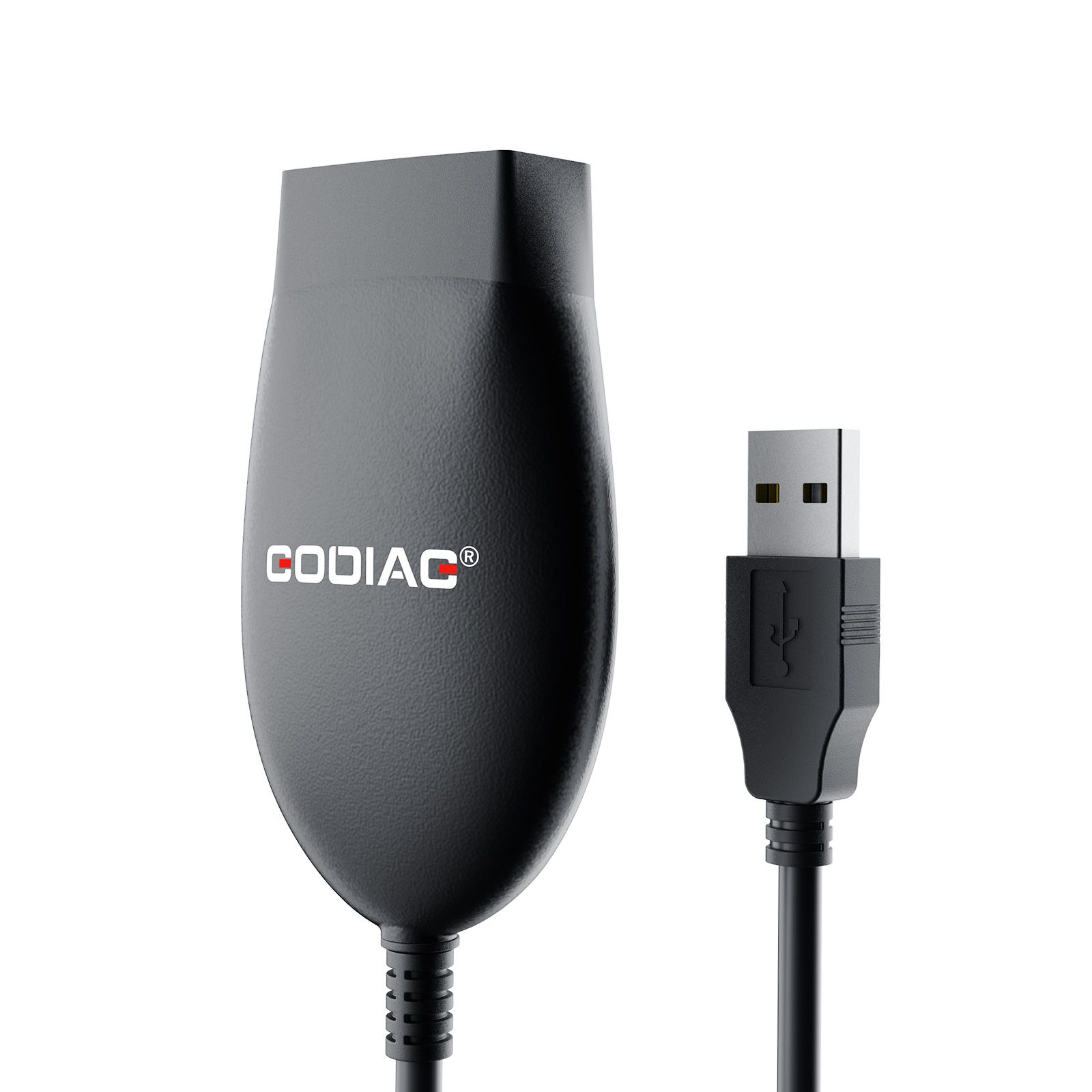

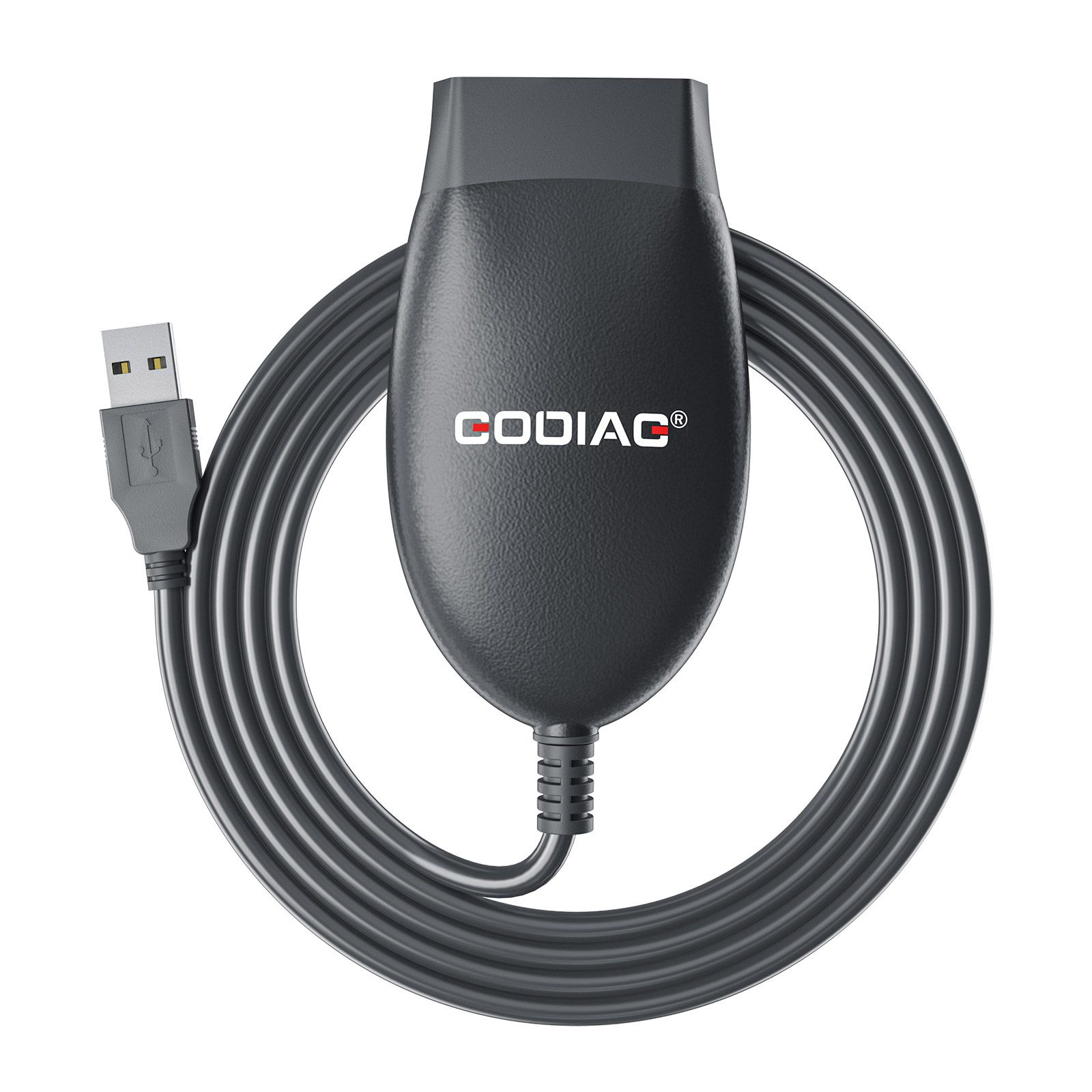

images of 2023 GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS/ HDS/ TIS/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327 Diagnose J1979 Compatible Vehicles

GODIAG GD101 J2534 Diagnostic Cable Support J2534 & ELM327 Diagnose J1979 Compatible Vehicles for Toyota/ Honda Acura/ ODIS/ Ford Mazda etc



GODIAG GD101 J2534 Highlights:

1. Compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0.
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
5. Wok on Windows 8/10/11, 32/64bit

GODIAG GD101 J2534 Function List:
Software Brand Year NOTE
Toyota TIS Techstream Toyota, Lexus 1995-2022 Free download and activate software, update by link
Honda HDS 3.102 Honda Acura 1995-2022 Does not support non-#7 K-line, update by link
ODIS-S, ODIS -E VW Audi Skoda Seat 1995-2022 For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection
Forscan 2.3.48 Ford Mazda Lincoln 1996-2022 Cannot do 3, 11 medium speed CAN
Scanmaster V2.0 1996-2022 Free download and activate software
J1979Tester 1996-2022 Free Honda immo code calculation
ELMConfig 1996-2022 Yes, test by your side
JLR SDD2 Jaguar Land rover 2006-2016 Yes
GDS2 GM Buick Cadilac Chevlert 1995-2022 Yes

Notice :
Can't support MS-CAN



GODIAG GD101 J2534 Features:

1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFLash...).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.

Notice:
1. Software Free Download:

Free Download Godiag J2534 V2.1 Software
For Honda HDS 3.104.024, Techsteam V17.30.011, JLR SDD V163, Forscan 2.3.48, Scanmaster v2.1, PCM-flash 1.2.0 and VAG ODIS 9.1.0, please contact online customer service on Whatsapp: +86 13995696053.
2. For PCMFlash 1.20, will need to buy a PCMtuner Dongle. And only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.
3. Not Support Win7 System

GODIAG GD101 J2534 Languages:

ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

Pcmflash: English, Russian

GODIAG GD101 J2534 Protocol Configuration:

1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.3a

Notice :
Can't support MS-CAN

GODIAG GD101 J2534 Hardware Configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0

How to use the GODIAG GD101 J2534?



GODIAG GD101 J2534 PCB Display:


GODIAG J2534 Software Firmware Upgrade Notice(March 31, 2023)
1. Software upgrade to 2.1
2. Firmware upgrade to 1.8
Solve the following problems:
1. In J2534 mode, the sending length of J1850VPW is extended to 4128
2. PyOBD software cannot be connected in ELM327 mode
3. ELM327 mode cannot read ISO9141 VIN

Open the startup software, connect the device, and click upgrade firmware.

Package Includes:


1pc x GODIAG GD101 J2534

Go to Buy: 2023 GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS/ HDS/ TIS/ Forscan/ ScanMaster/ SDD/ PCM-Flash/ ELM327 Diagnose J1979 Compatible Vehicles
