JDiag Elite II Pro J2534 Device with Full Adapters Diagnostic and Programming 2 in 1 with DELL E6430 PC 4G RAM I5 CPU 160GB SSD

JDiag Elite II Pro is a professional programming equipment which can fully support the international programming protocols SAE J2534-1 and J2534-2, and support ECU programming for hundreds of models.

UKOBD2 Provide top quality JDiag Elite II Pro J2534 Device with Full Adapters Diagnostic and Programming 2 in 1 with DELL E6430 PC 4G RAM I5 CPU 160GB SSD, if you need JDiag Elite II Pro J2534 Device with Full Adapters Diagnostic and Programming 2 in 1 with DELL E6430 PC 4G RAM I5 CPU 160GB SSD, or have any questions about JDiag Elite II Pro J2534 Device with Full Adapters Diagnostic and Programming 2 in 1 with DELL E6430 PC 4G RAM I5 CPU 160GB SSD, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

images of JDiag Elite II Pro J2534 Device with Full Adapters Diagnostic and Programming 2 in 1 with DELL E6430 PC 4G RAM I5 CPU 160GB SSD

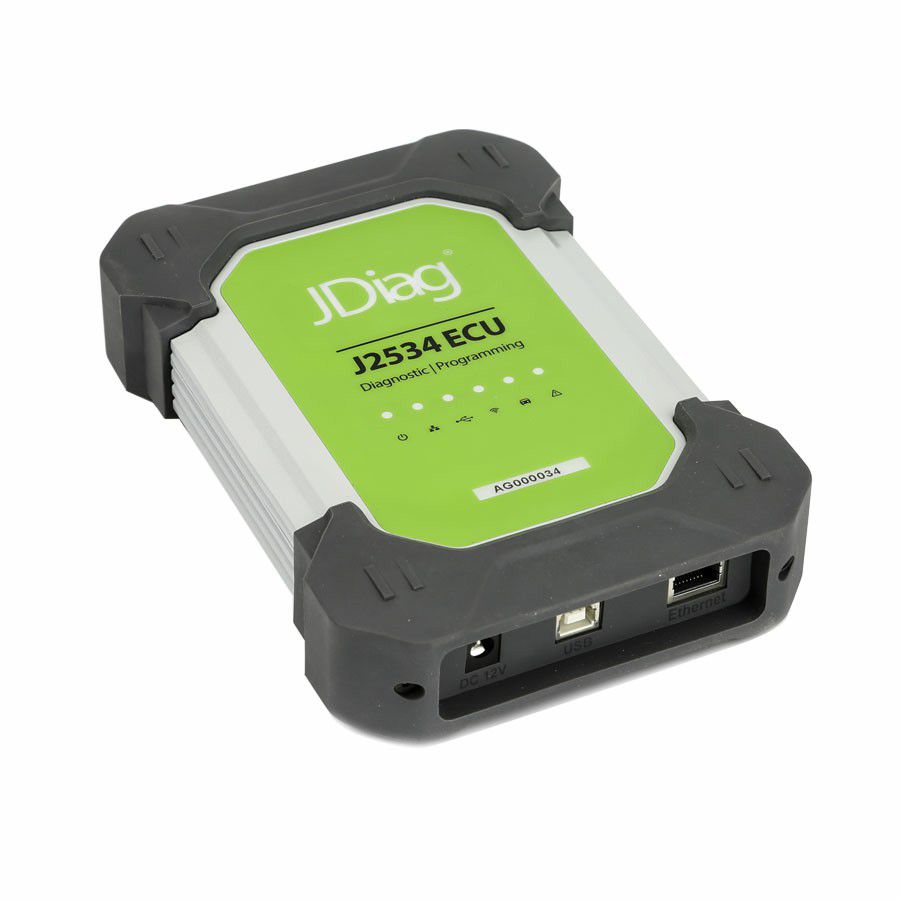

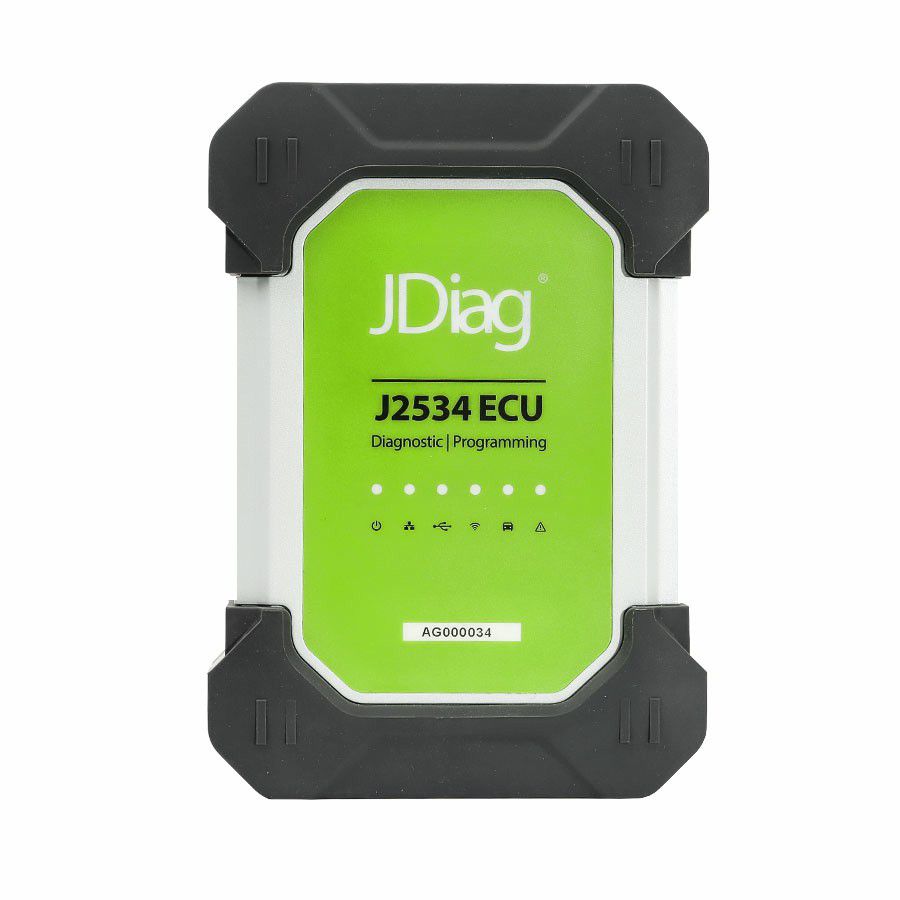

JDiag Elite II Pro J2534 Device with Full Adapters

JDiag Elite II Pro is a professional programming equipment which can fully support the international programming protocols SAE
J2534-1 and J2534-2, and support ECU programming for hundreds of models. It has powerful functions,
stable performance, professional intelligence, which make it the best choice for the comprehensive vehicle maintenance shop to do the
high-ranking professional vehicle diagnosis and programming.
This JDiag Elite II Pro comes with Full Adapters.

JDiag Elite II Pro J2534 Main functions:

1. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards; support car single module/whole car programming,
record the database of interrupt programming and other special functions can effectively prevent the system to be crash.
2. Compatible with Land Rover, Jaguar, Mercedes-Benz, Volvo, Toyota, GM, Ford and other cars for OEM diagnostics;
can support hundreds of models of dozens car brands from imports/joint ventures for diagnostic, fast and intelligent.
3. Instead of the VCI Bluetooth converter, used directly by WIFI, cables and other ways to connect with the JDiag diagnostic
computer for diagnosis, can do testing via a variety of connection methods, much exible and convenient;
4. Adopt high-quality materials; the JDiag Elite II Pro is solid and strong, wear-resistant wear, more durable made by aluminum alloy, and the computer by industrial materials,
can meet the three anti-military functional requirements;

JDiag Elite II Pro J2534 advantages:

1. It is a multi-check, highly integrated computer diagnostic tester, the product in the current market can only support
single-brand diagnostic or programming, even if there are some products can work with different car brands,
but only can do diagnostic, not able to do programming;
2. Elite II is a perfect whole set which includes the interface, software, computer and different vehicle adapters,
the device is ready to work when you get, no need to prepare or install other accessories, no need to worry about the
incompatibility issues between equipment and software, no need to worry about the problems of the guidance for using,
after-sales service and so on.

JDiag Elite II Pro J2534 Technical Parameters

Bus Protocols
CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
2nd CAN (Dual or Single Wire)
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
KWP2000 (ISO9141/14230)
Chrysler SCI (J2610)
Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004) SAE J2534-2 (Dec 2014)
Compliant to ISO 22900-1 MVCI physical layer
Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux
6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)
Ground pins 9, 12, or 15
Internal Compact Flash slot (must be configured when ordering)
Optional external Compact Flash slot

JDiag Elite II Pro J2534 Specifications

Operating voltage: 7-26 Volts
VCI Size: 20cm (L) x 14cm (W) x 4.5cm (H)
Operating Temperature: Commercial Range (0 to +70 C)
ISO22900 Compliant for GM’s Tech2WIN software

Dell E6430 Laptop we offer:

95% New, 4G RAM, i5 CPU, 160GB SSD, software preinstalled, ready to work

Coming with Win7 32Bit O/S, software run in VMWARE, and multi-languages.

Package including:

1pc x Elite II Pro Interface
1pc x Main Cable
1pc x Lan Cable
1pc x USB Cable
1pc x OBDII Adapter
1pc x Honda 3 Pin Adapter
1pc x Toyota 17 Pin Adapter
1pc x BMW 20 Pin Adapter
1pc x GM 12 Pin Adapter
1pc x Benz 38 Pin Cable
1pc x Opel 10 Pin Cable
1pc x Audi 4 Pin Cable
1pc x Plastic Box

Go to Buy: JDiag Elite II Pro J2534 Device with Full Adapters Diagnostic and Programming 2 in 1 with DELL E6430 PC 4G RAM I5 CPU 160GB SSD
