Autel MD802 Scanner Description:

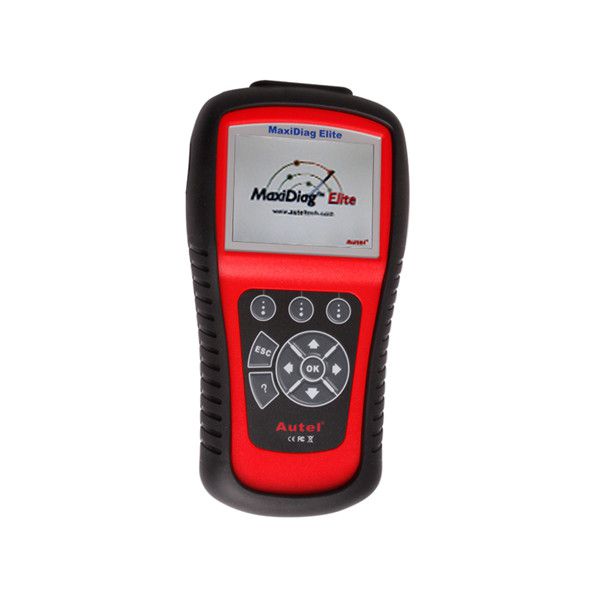

Autel MaxiDiag Elite MD802 Full System with Data Stream is the most advanced and multifunctional scan tools powered by its exclusive technology, are designed for technicians to troubleshoot either the basic four systems or all the systems for most of major vehicles on the road today. This new diagnostic platform delivers fast and easy diagnostics at the right price.

1. Reads live datastream and freeze frame

2. Turns off warning lights

3. Enhanced OBD II Mode 6

4. OBD II code tips guide technicians to the root cause of trouble code faster

5. Data graphing

6. Prints data via PC

Read and Erase Codes on All Available System Modules

Read Body Control Modules including BCM, Digital Radio, Standard Radio, Drivers Door Module, HVAC (Air Conditioning), Instrument Panel Cluster IPC, Seat Memory Module, Park Assist Module, Passenger Door, Occupant Presence System, Rear Heated, Seat Module, Rear HVAC Module, Remote Control, Door Lock, Roll Over Sensors Signal, Acquisition Module, Theft Deterrent Amplifier, Oil Light Reset, Central Gateway, Electronic Ignition Switch, Immobilizer, Overhead Control Panel, Headlamp Controller, Power Window Controller, Convertible Top Controller, Wipers, Steering Column Module.

Read Powertrain Modules

Read Powertrain modules including Transfer case Module, ATC Fuel Pump Control Module, FPC Fuel Injection Control Module, FICM Radar Sensor Control Unit (auto cruise control), All Wheel Drive Control VG Transfer Case Module, Electronic Selector Module.

Display TFT color display (320 x 240 dpi)
Operating Temperature 0 to 60°C (32 to 140 °F)
Storage Temperature -20 to 70°C (-4 to 158°F)
External Power 12.0 to 18.0 V power provided via vehicle battery or adapter

1pc x MD802 Main unit

1pc x SD Card

1pc x OBDII Cable

1pc x USB Cable

1pc x User's Manual

1pc x CD

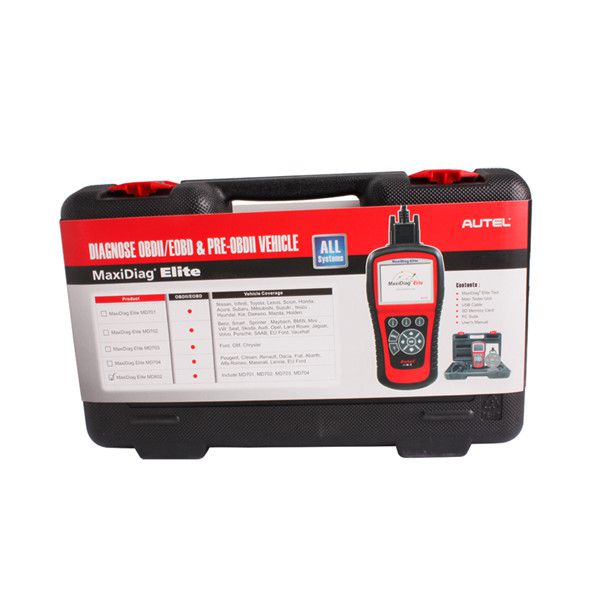

1pc x Carry case

MD802 VS DS708:


MD802 vs.MD704 vs.MD703

FAQ Autel MD802 Code Scanner:

Q: Does this tool include the 38 pin mercedes benz adapter, 20pin BMW, 14 pin Nissan, and 16 pin CCD cable?
A: The Autel MD 802 MaxiDiag does not come with any adpters for any vehicles period. Includes only the OBD2 Cable and printer software CD and manual.

Q: Trying to replicate MB transmission temp monitoring in real time. Will this unit monitor ATF fluid temps in real time?
A: I have bought this model and used it successfully to monitor the ATF in real time. This was required when flushing the ATF on my Renault Laguna (2002).

Q: Will this tool read the abs codes on a 2002 suzuki grand vitara ?
A: Should read, and clear your ABS codes.

Q: will this work on 02 boxster srs and 02 xtype/05 s40 oil change reset?
A: It shows support for oil reset for Boxster(987). As for Jaguar it has support for: 2010-2014 xk, 2008-20014 xf, 2010-2014 XJ range, 2014 F type.

Q: Can this do ECU adaptation/programming and programming for keys like the Autel DS708 and Autel Maxisys Pro M908?
A: No, it just a scanner.

Q: Will it read 2001 honda crv ABS & srs codes?
A: Yes it reads honda.

Q:Anyone used the MD802 to troubleshoot & diagnose the SRS system on a 2000 Volvo S70?
A: I have not used it on a Volvo. It has worked great on every car that I have used it on so far. Before you buy you might want to be sure that the S70 is available for download on the update website. Hope this helps.

Tags: maxidiag elite md802, autel md802 , elite md802 , md802 full system
