OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool

OBDSTAR MS70 is the new generation of intelligent motorcycle (Motorcycle/Snow mobile/ATV/UTV etc) diagnostic equipment of OBDSTAR Technology Co., Ltd, based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 7-inch capacitive touch screen, touch sensitive. Working with Moto special kit, it can do Moto IMMO, Odo recalibration, ECU programming(ECU tunig & remap will come soon!)

UKOBD2 Provide top quality OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool, if you need OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool, or have any questions about OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

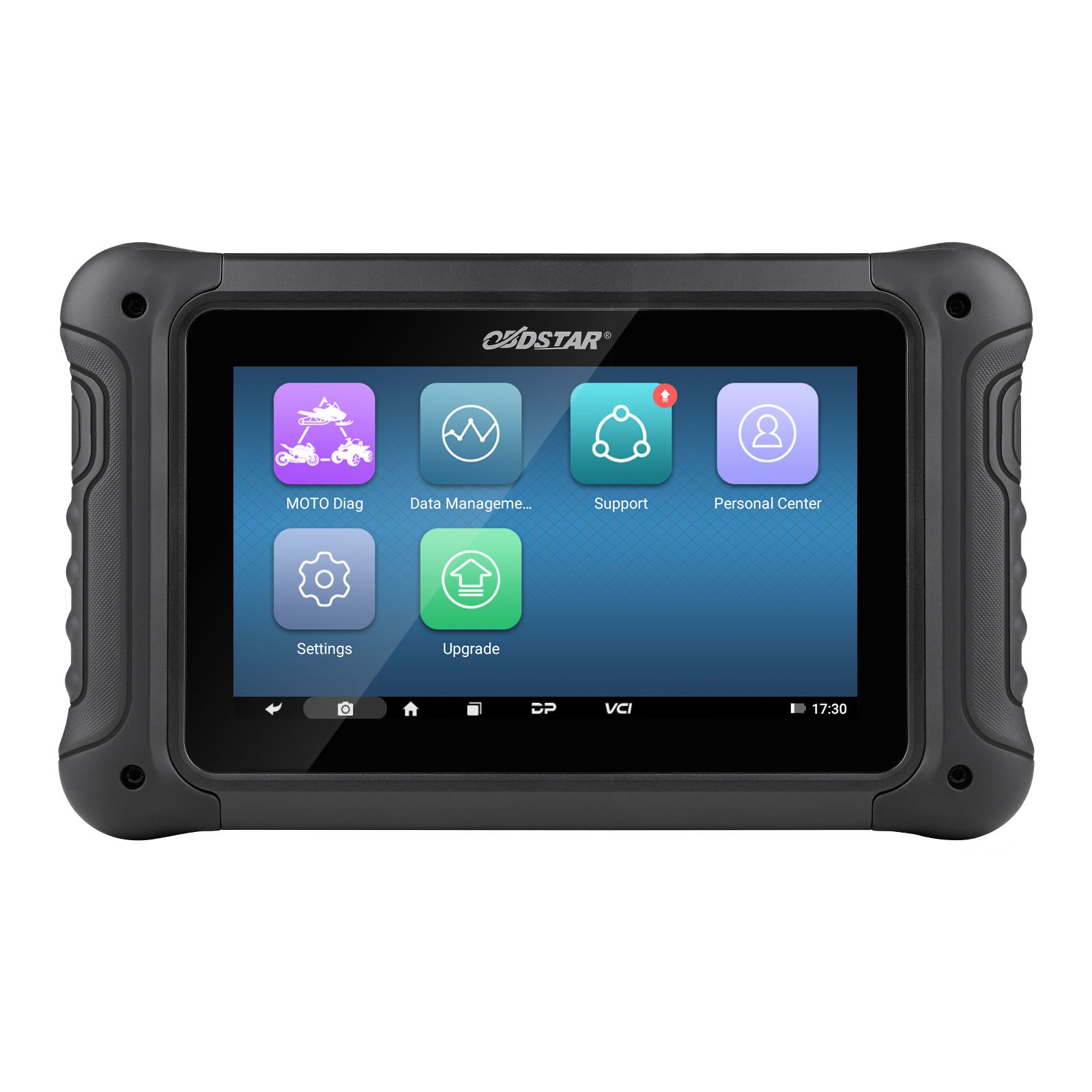

images of OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool

OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool

Supports Moto Diag
Working with Moto special kit, it supports Moto IMMO, Odo recalibration, ECU programming(ECU tunig & remap will come soon!).

OBDSTAR MS70 Functions

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.

OBDSTAR MS70 Advanced function

1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV diagnostic function support series

ASIA:
AEON, BAJAJ, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

EUROPE:
APRILIA, BENELLI, BMW, DERBI, DUCATI, GILERA, HM, HUSQVARNA, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, ROYAL ALLOY, TRIUMPH, VESPA

AMERICAS:
ACELLERA, BRP, HARLEY-DAVIDSON, INDIAN

CHINA:
CFMOTO, CHINA ABS, CHINA ENGINE, HAOJUE, QJBENELLI, SHINERAY, ZONTE

More functions under developing...

Function Display

1. Main Page/Brand Supported
2. Help Data/Technical Bulletin/Fault Guidance
3. Supported System List/Manual Service Function
4. Components Description
5. Diag Socket/Diag Connector Location
6. Data Flow Text/Waveform Diagram/Instrument Diagram








​​​​​​​
​​​​​​​Product Specifications:
Operation system Android 5.1.1
CPU RK3128 quad-core ARM cortex A7
Battery 3700mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
Storage capacity 16GB
LCD 7.0 inch
LCD resolution 1024*600
Touch screen Capacitive touch screen
Wifi Supported
Working temperature -20℃~55℃ (14℉~131℉)
Storage temperature -20℃~70℃ (-4℉~158℉)
Weight About 1.3kg
Dimension 243mm*148*mm*36mm

MS70 VS MS80 BASIC VS MS80 STD Product Comparison Chart:

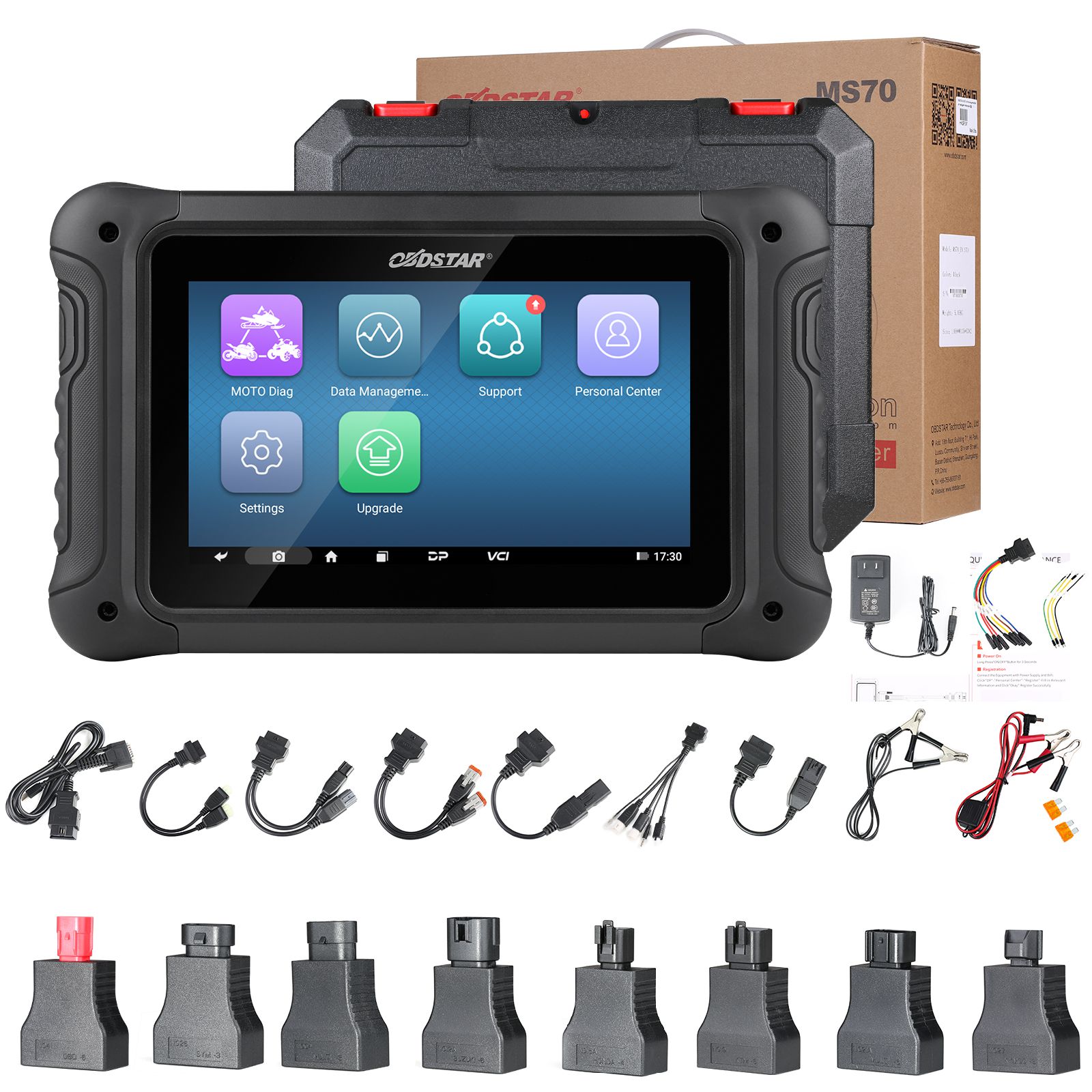

Package list:

1 set * OBDSTAR MS70


Go to Buy: OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool
