Original Launch X431 GDS Gasoline/Petrol Diagnostic Tool

X431 GDS has all the key functions which you would expect from a Launch diagnostics tool including:1. Read/clear fault codes2. View live diagnosics data stream in numerical or graph format3. Carry out advanced ECU functions4. Print out diagnostic reports using the built-in printer

UKOBD2 Provide top quality Original Launch X431 GDS Gasoline/Petrol Diagnostic Tool, if you need Original Launch X431 GDS Gasoline/Petrol Diagnostic Tool, or have any questions about Original Launch X431 GDS Gasoline/Petrol Diagnostic Tool, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

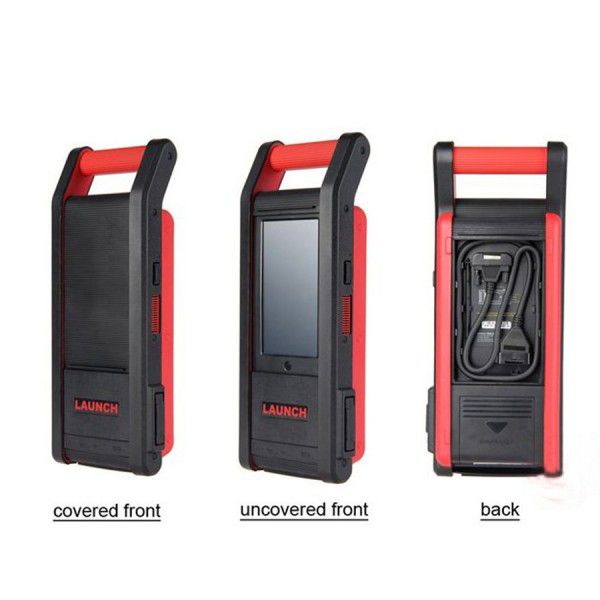

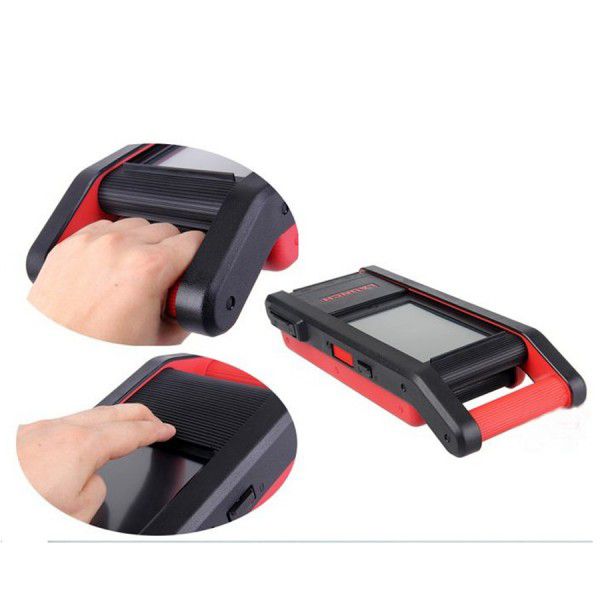

images of Original Launch X431 GDS Gasoline/Petrol Diagnostic Tool


Original Launch X431 GDS Gasoline Diagnostic Tool

Top 4 Reasons to Get Launch GDS Gasoline:

1. Update Online on Launch Official Website Free for One Year, old version is still available even you don't update
2. Multi-Language: English, French, Italian, German, Japanese, Spanish, Portuguese, Russian, Turkish, Polish, Danish, Korean ,Traditional Chinese
3. Powerful Technical Support from LAUNCH
4. Reasonable Price with Fast Shipping by DHL


Notice:
1. It doesn't have a SD Card,only has a 16GB hard disk
2. Dealer Code: 86A or 86K
3. Support Gasoline Only, if you want both for Gasoline and Diesels, please choose item number SP155
X431 GDS Description
X-431 GDS is the latest scan tool from Launch. It has the same vehicle coverage as the rest of the X-431 family, but with added functionality. GDS runs on Windows XP platform and allows the user to go on-line, wired or wireless, for one-click software updates, repair information on popular sites and even e-mail messages. The internal battery that charges while scanning a vehicle will give you the freedom to browse the device even when unplugged. With only one connector for all 16-pin aplications and the SSD internal storage, GDS is the speed champion at scanning. Future expansion with interchangeable modules will include battery tester, oscilloscope with ignition analyzer, sensor simulator and J2534 pass-thru tool.
X431 GDS Features
1.Network Technology:
Supports Wi-Fi wireless Internet communications. It also equipped with an Ethernet port supporting wired Internet connection to achieve high-speed Internet access.
2.Value Added Services:
Provides maintenance information, maintenance cases and Internet search service. To achieve main module upgrading by one key, feedback by one key, and searching by one key etc. value-added services.
3.Compliant with the Projector:
Provide VGA interface, support for external projector or large screen display extension to achieve 800×600 and 1024×768 two kinds of resolution projector display.
4.Module Design:
Adopt modular design concept, and except the main module (includes display, diagnosis, and printing), other modules are unified sizes and appearances to achieve that the customer can purchase each one(s) of their actual need.
5.Powerful Functions:
Equipped with car trouble diagnosis, oscilloscope, engine ignition analysis, sensor simulation, and multi-meter functions to achieve a now generation of high-end integrated diagnostic products.
6.Industrial Computer:
Introduced the industrial computer standards to car trouble diagnosis to achieve more stable operation and more reliable quality.
7.Unique Appearance:
Fully upgrade the structure and the appearance, fully account of the user's experience and the ergonomics, to achieve unique and innovative design.
8.Wide Test Range:
This diagnostic software can detect electronic control system malfunction which from Asia, Europe, and the United States etc. to achieve one of the most wide vehicle testing diagnostic instrument of the globe.
9.Quick upgrade:
the software upgrades nearly 1,000 times each year to ensure the timely distribution of the software and the function.
X431 GDS Series
1.Intro Feature Function Improvement Spare Parts
Launch X431 GDS Value Added Services Provides maintenance information, maintenance cases and Internet search service. To achieve main module upgrading by one key, feedback by one key, and searching by one key etc. value-added services.
2.Compliant with the Projector Provide VGA interface, support for external projector or large screen display extension to achieve 800 x 600 and 1024 x 768 two kinds of resolution projector display.
Module Design Adopt modular design concept, and except the main module (includes display, diagnosis, and printing), other modules are unified sizes and appearances to achieve that the customer can purchase each one(s) of their actual need.
3.Powerful Functions Equipped with car trouble diagnosis, oscilloscope, engine ignition analysis, sensor simulation, and multi-meter functions to achieve a now generation of high-end integrated diagnostic products.
4.Industrial Computer Introduced the industrial computer standards to car trouble diagnosis to achieve more stable operation and more reliable quality.
Unique Appearance fully upgrade the structure and the appearance, fully account of the user's experience and the ergonomics, to achieve unique and innovative design.
5.Launch X431 GDS Wide Test Range This diagnostic software can detect electronic control system malfunction which from Asia, Europe, and the United States etc. to achieve one of the most wide vehicle testing diagnostic instrument of the globe.Quick upgrade the software upgrades nearly 1,000 times each year to ensure the timely distribution of the software and the function.
X431 GDS Included Software







Specifications:
1.Operation system: Windows Embedded Standard
2.CPU: 32bits CPU
3.Display: 7" TFT Hi-brightness color touch screen
4.Main unit power supply: DC14V
5.Working temperature: -10 ~55
6.Vehicle Type: 12V/24V
7.Built-in hard disk: 8G
Software Options:
1 years software updates
Launch GDS Supported Car List English
SerialNo: Date:2012-4-10
No. Origin Software Name Version
1 - Demo Software V14.30
2 Smart OBDII diagnostic software V22.13
3 America America FORD diagnostic software V40.30
4 Chrysler diagnostic software V27.80
5 GM diagnostic software V42.10
6 Europe Audi diagnostic software V26.11
7 BENZ diagnostic software V45.55
8 BMW diagnostic software V45.10
9 Citroen diagnostic software V40.25
10 Fiat diagnostic software V32.20
11 Landrover diagnostic software V31.30
12 Opel diagnostic software V39.40
13 Peugeot diagnostic software V42.26
14 Porsche diagnostic software V20.13
15 Renault diagnostic software V40.56
16 Seat diagnostic software V25.11
17 Skoda diagnostic software V25.11
18 Volkswagen diagnostic software V26.11
19 Volvo diagnostic software V41.60
20 Japan Honda diagnostic software V43.80
21 Mazda diagnostic software V37.20
22 Mitsubishi diagnostic software V29.51
23 Nissan diagnostic software V40.71
24 Subaru diagnostic software V21.43
25 Suzuki diagnostic software V31.11
26 TOYOTA diagnostic software V46.50
27 Korea Daewoo diagnostic software V26.40
28 Hyundai diagnostic software V47.60
29 Kia diagnostic software V41.60

Launch X431 GDS English Standard Packing List
SerialNo: Date:2012-4-10
No. Part category Part No. Part name Quantity
1 Main unit 201024727 X431, GDS-II host 1
2 Connector 203010260 CHRYSLER-6 1
3 203010263 MAZDA-17 1
4 203010247 TOYOTA-17 1
5 203010209 GM/VAZ-12 1
6 203010237 DAEWOO-12 1
7 203010249 TOYOTA -22 1
8 203010266 KIA-20 1
9 203010226 HONDA-3 1
10 203010416 SUBARU-9 1
11 203010447 SSANGYONG-20 1
12 203010224 BENZ-38 1
13 Y203010223 BMW-20 1
14 Y203010250 FORD-6+1 1
15 203010269 MITSUBISHI/HYUNDAI-12+16 1
16 Y203010268 NISSAN-14+16 1
17 Y203010203 AUDI-4 1
18 Y203010274 UNIVERSAL-3 1
19 Y203010207 FIAT-3 1
20 Y203010415 SSANGYONG-14 1
21 Y203010417 BENZ-14 1
22 Test cable Y203010547 X431, 3G-II diagnostic cable host (simple outsourcing) 1
23 Y203010242 LIGHTER 1
24 Y203010270 CLIPPER 1
25 Y203010454 OBDII-16 Prolongation Cable 1
26 Y203010486 X-431 DIAGUN BOX Cable 1
27 Accessories 102210086 3G power adapter, INPUT: AC 100-240V/50-60Hz, OUTPUT: 14V/4A, DC Plug: φ5.5 * φ2.2, center positive, negative external 1
28 204011108 X431, GDS English standard diagnostic configuration software 1
29 107010993 X431,GDS-II User Manual 1
30 102150010 Clipper fuse 5*20mm 4
31 102150012 Lighter fuse 6*30mm 2
32 107020654 Private & confidential 1
33 199010001 X-431 Printer paper 1

X431 GDS Connecting Wifi and Registration

Step 1: X431 GDS Menu





Step 2: X431 GDS Settings







Step 3: X431 GDS Search and Connect to Network









Step 4: X431 GDS Update





Step 5: X431 GDS Registration









Step 6: X431 GDS Purchase Software, Update and Download The Software






X431 GDS Connectors:


Go to Buy: Original Launch X431 GDS Gasoline/Petrol Diagnostic Tool
