The device has two versions, one is in 8 languages:

A. Britain, Russia, Italy, France, Germany, Spain, Portugal, Poland

B. English, Russian, Italian, French, German, Spanish, Portuguese, Chinese

At present, our shipments are all A language version, if you need B version, you can consult customer service

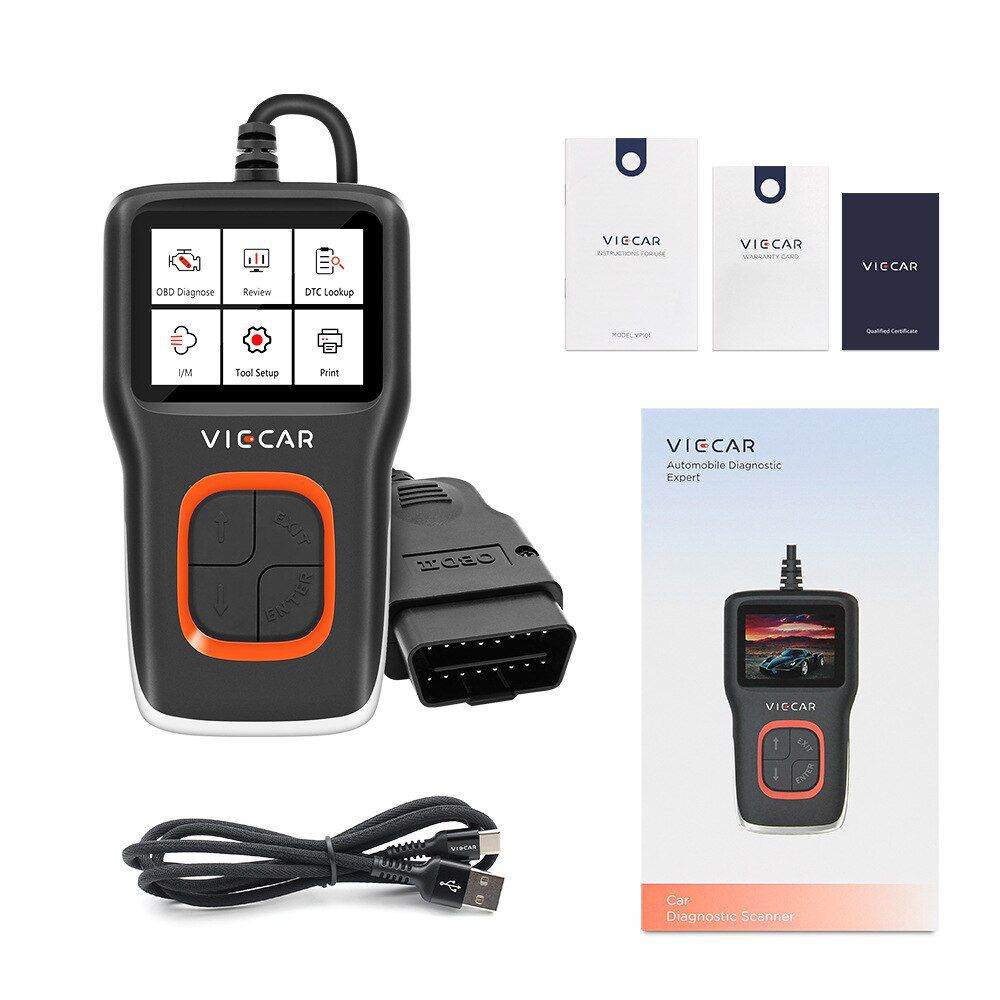

Viecar VP101 Code Reader Full agreement Auto Scanner Tool

1. Product Introduction

VP101 is a CAN OBDII / EOBD code reader is the simplest and fastest solution to OBD faults. When diagnosing inspection engine problems, it provides accurate information and accurate judgments. It quickly and effectively solves OBD2 / EOBD faults on today's vehicles. problem.

Breaking the conventional car OBD reading card concept, from a new definition, it also has a 2.8-inch TFT color screen and functions for I / M preparation testing, has a stylish appearance, creates a first-class material feel, is not a simple car reading code Card fault detector is the perfect tool that mechanics can't wait for.

2. Product function

1. Support nine standard protocols of OBD II / EOBD;

2. Support OBD functions such as vehicle fault diagnosis and real-time data flow;

3. With data waveform display, data storage and playback functions;

4. Data with emission testing

5. Color LCD display with high resolution;

6. Good reliability, wide supply voltage range 8 ~ 36V, with stronger overcurrent and overvoltage protection functions;

7. Support 8 languages

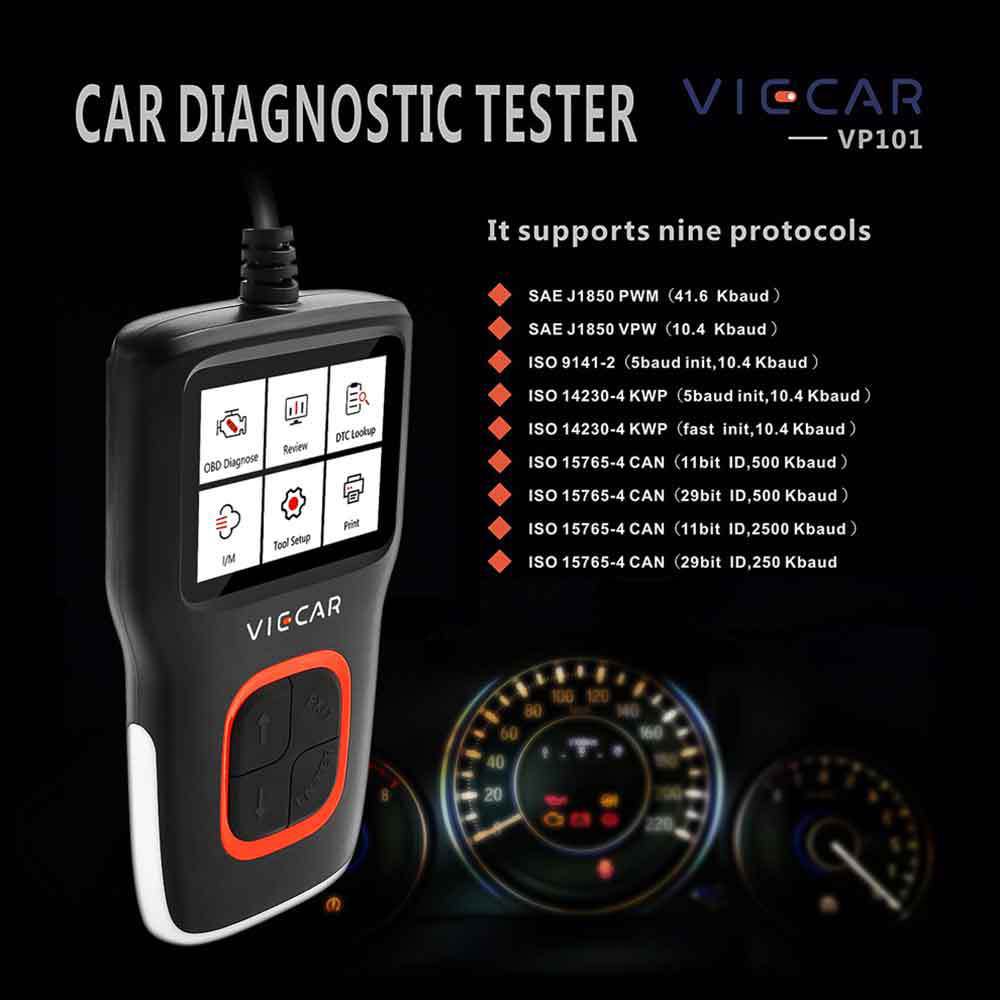

3. Support Agreement:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

4. Supported vehicle data

1. Read the error diagnosis code

2. Clear the fault code (clear the error code and turn off the MIL)

3. Engine speed per minute (RPM)

4. The calculated load value

5. Coolant temperature

6. Fuel system status

7. Speed

8. Short-term fuel situation

9. Long-term fuel situation

10. Intake manifold pressure

11. Fuel injection advance time

12. Intake air temperature

13. Air flow speed

14. Absolute position of throttle

15. Oxygen detection voltage associated with short-term fuel status

16. Fuel system status

17. Fuel pressure

18. Fuel consumption monitoring, etc.

Remarks: The number of data items supported varies by model year, and the actual support situation prevails.

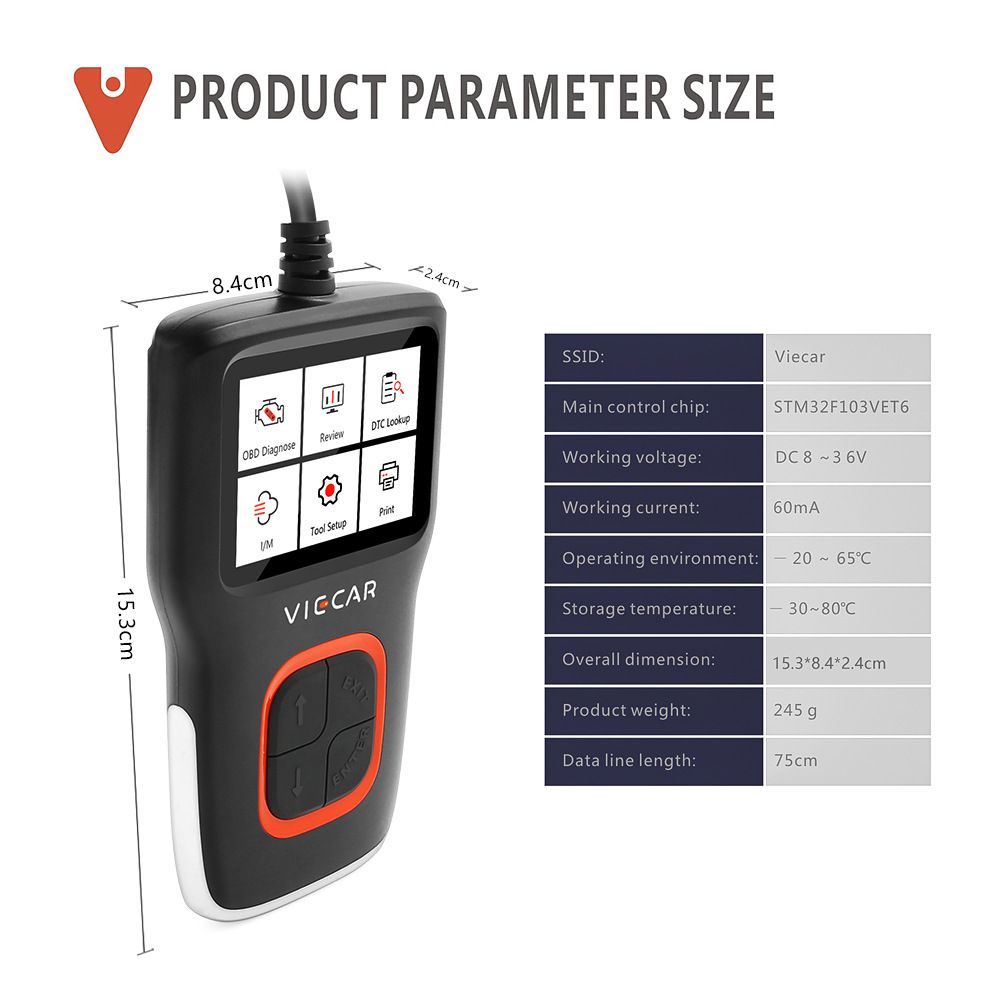

5. Introduction of hardware performance parameters:

Main control chip: STM32F103VET6

Software platform: Support Windows

Working voltage: DC 8~36V

Working current: 50mA

Standby current: 5mA

Operating environment: -20~65 ℃

Storage temperature: -30~80 ℃

Dimensions: 154.5 * 85 * 24mm

6.matters needing attention

The product is not compatible with new energy vehicles, hybrid vehicles, diesel vehicles, not OBD2 agreement models
