Original Wellon VP896 VP-896 EEPROM Programmer Updated Version of VP890

This Wellon VP-896 Programmer is original, it is the updated version of VP-890. VP-896 is a reliable, high speed, high performance and low cost advanced universal programmer. It is a perfect over-current protection circuit, short-circuit will not damage the chip programmer.

UKOBD2 Provide top quality Original Wellon VP896 VP-896 EEPROM Programmer Updated Version of VP890, if you need Original Wellon VP896 VP-896 EEPROM Programmer Updated Version of VP890, or have any questions about Original Wellon VP896 VP-896 EEPROM Programmer Updated Version of VP890, welcome to contact us.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Porsche Piwis III, USB Link 2, Scania VCI3, CAN Clip, wiTech MicroPod 2, T300 key programmer, locksmith tools

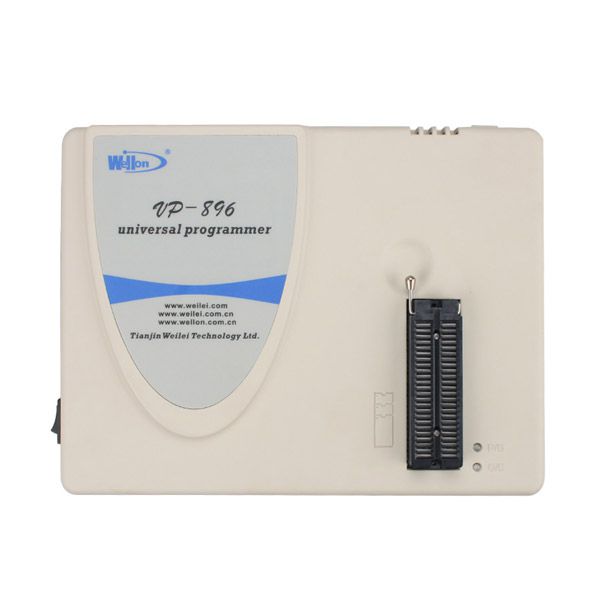

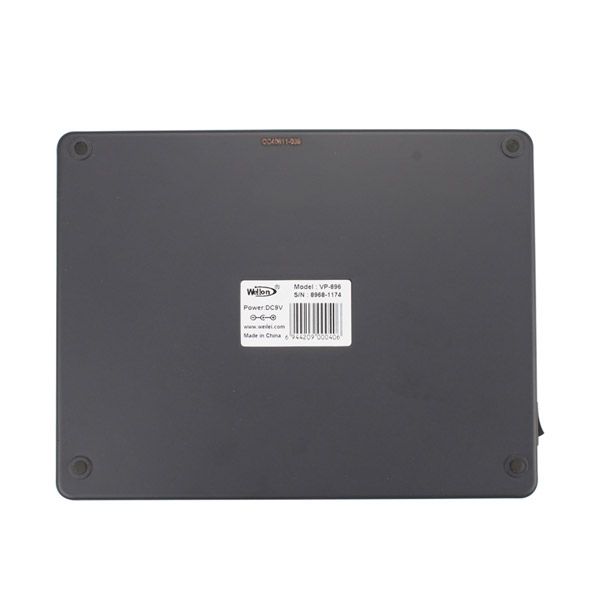

images of Original Wellon VP896 VP-896 EEPROM Programmer Updated Version of VP890

Original Wellon VP896 VP-896 Programmer Updated Version of VP890

Top 8 Reasons to Get 2014 Original Wellon:

1. English online help system, user-friendly.
2. Load, edit and save files is extremely convenient
3. Built-in high-speed microcontroller, automatic calibration data, to ensure system reliability.

4. Support WindowsXP / Vista / Windows 7 (32bit and 64bit) / Windows 8 (32bit and 64bit) operating system.

5. Can be used as signal generator generates a square wave signal as a frequency meter can measure the frequency.

6. Suitable for electronic product development, mass burning chips, mobile phones, computers, car repair and so on.
7. Supports dozens of manufacturers of PLD, E (E) PROM, FLASH, MCU and other tens of thousands of programmable devices.

8. Support Multi-languages: Simplified Chinese/ Traditional Chines/ English/ Italian/ Dutch/ Korean/ Polish/ Portuguese (Brazil)/ Turkish/ Hungarian

Wellon VP896 VP-896 Programmer Features:

1. File formats automatically recognized
2. Automatic recognition memory manufacturers and models.
3. Chip serial number automatically increased functionality.
4. Integrated menu-driven interface
5. 48-pin locking socket of U.S. imports.
6. For most chip reader can no external power supply.
7. Testable TTL & CMOS standard logic devices and memory.
8. Programming Module can 4-pin to 48-pin DIP devices for programming or testing.
9. via optional adapter, can support 4-pin to 64-pin package devices variety.
10. After having set the chip access to reliable automatic programming function, easy to mass production.
11. Using lead-free solder, using a transparent shell, meet environmental standards with flame retardant ABS material functions
12. High-speed programming, burn P89C58, blank check erase + + + programming + authentication encryption, only 1.9 seconds.

Wellon VP896 VP-896 Programmer Functions:

1. Supports ISP programming.
2. Chip select provides manufacturers logo, can help users quickly find clearer chips.
3. Fast editing buffer, block copy, block fill, high and low byte swapping, the string search functions.
4. Programming parameters can be modified according to the specific conditions of the chip programmed parameters.
5. Chip extremely detailed information, including the package diagram, chip model nomenclature and adapters available.
6. Automatic detection chip inserted backwards, plug the wrong, and poor contact pin chip internal short circuit and other functions.
7. Supports byte (BYTE), word (WORD), double word (DOUBLE WORD) format data files automatically separated.
8. Can test TTL & CMOS standard logic devices and memory. Standard logic devices can automatically determine the model.
9. Contains test vectors Editor provides open to users of the test database structure, users can add their own test.
10. Complete self-test function, to ensure the hardware intact. Programming can be functional testing.
11. Device algorithm entirely by software, USB interface, with automatic online upgrade function, effectively protect user investment interests.
12. Provide flexible document, cache management functions. Enabling file into memory automatically cleared, splicing into multiple files and so on.
13. Supported file formats: JEDEC, BINARY, MOTOROLAS, TEKTRONIX, INTEL, HOLTEK, EMC (. CDS), INTEL HEX16 format.
14. Select the model according to the manufacturer or in accordance with the manufacturer's two-way choice model selection method can
automatically search for selected devices.

Wellon VP896 VP-896 Programmer Specifications:

1. Standby current: <200 mA; Working Current :250-350mA.
2. Power supply: Input AC 100-240V 50/60Hz Output DC 9V/1.5A

Wanranty Surport:

1. Programmer is warranted to be free of manufacturing or workmanship defects
2. For one year from the date of purchase.

Package Including:

1pc x programmer
1pc x USB cable
1pc x User Manual
1pc x Program CD
1pc x DC power supply

Comparison of Wellon Programmers:

Model No. GP204 GP204S GP201 GP-2 GP-1 GP600 GP400 GP200 VP-896 VP-890 VP-496/499
USB Port USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0
Support devices 83000+ 36000+ 83000+ 76000+ 36000+ 75000+ 36000+ 34000+ 80000+ 76000+ 32000+
Pin Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers 48Pin full Drivers
Low voltage device 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.5V
LCD Screen YES NO NO
ISP Prog Yes NO YES NO
Prog.+Ver.Speed
(39VF160)
42 42 42 42 42 42 42 42 42 42 42
Prog.+Ver.Speed
(29VF040)
11.7 11.7 11.7 11.7 11.7 11.7 11.7 11.7 11.7 11.7 11.7
Prog.+Ver.Speed
(K9F2808U0A)
99 99 99 99 99 99 99 99 99 99 160
Prog.+Ver.Speed
(P89c58)
1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9
Prog.+Ver.Speed
(MX25L3205)
42 42 42 42 42 42 42 42 42 42 66
I/O Drivers 256 Levels
OS Windows XP/Vista/7/8
Pin detection Yes
Online Upgrade Yes
TTL Test Yes
